1259 Nidec | 1/3 hp 1100 RPM 3-Speed 277V; 5.0" AC Motor
1259 Nidec | 1/3 hp 1100 RPM 3-Speed 277V; 5.0" AC Motor
1259 Nidec | 1/3 hp 1100 RPM 3-Speed 277V; 5.0" AC Motor
1259 Nidec | 1/3 hp 1100 RPM 3-Speed 277V; 5.0" AC Motor

Nidec

1259 Nidec | 1/3 hp 1100 RPM 3-Speed 277V; 5.0" AC Motor

(No reviews) Write a Review
$242.65
$216.19
SKU 1259
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 277V
Horsepower 1/3 HP
RPM 1100
Type Permanent Split Capacitor
Amperage 0.32 Amps
Bearings Ball Bearings
Speeds 3-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
Adding to cart… The item has been added
Description

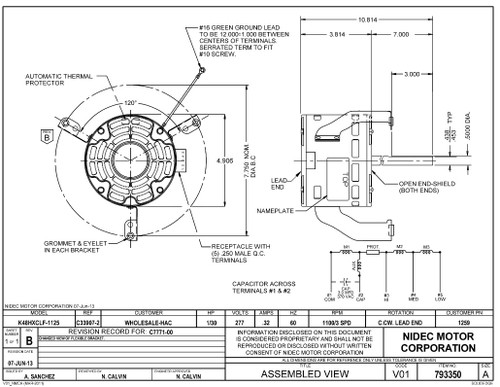

  • 1/3 hp 1100 RPM 3-Speed 277V 0.32 amps
  • Shaft 1/2" x 7.0"
  • Rotation CW shaft end
  • 5.0" Diameter
  • Motor case length 3.814"
  • Ball bearings
  • Bracket Mount
  • 3MFD 370V Capacitor REQUIRED (Our Part #3DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; 40" Leads. Application: Package terminal air conditioner. K048CLF1125011B. Suggested after market replacement for IEC unit motors: K48HXTSP-4126, 4126, D1053, 5KCP29BK6016AS, 5KCP29BK8094S, 5KCP298520S, 70556307

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 277V
Horsepower 1/3 HP
RPM 1100
Type Permanent Split Capacitor
Amperage 0.32 Amps
Bearings Ball Bearings
Speeds 3-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
!
