sale
Leeson

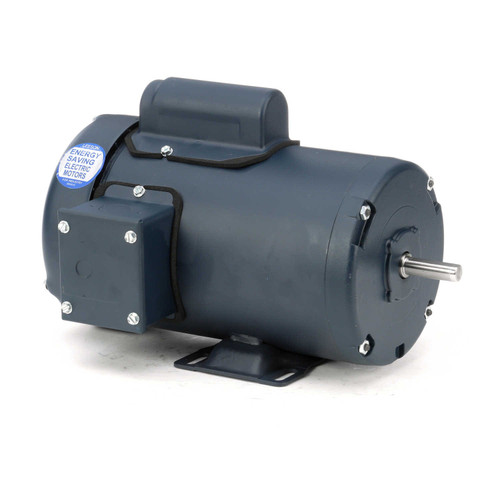

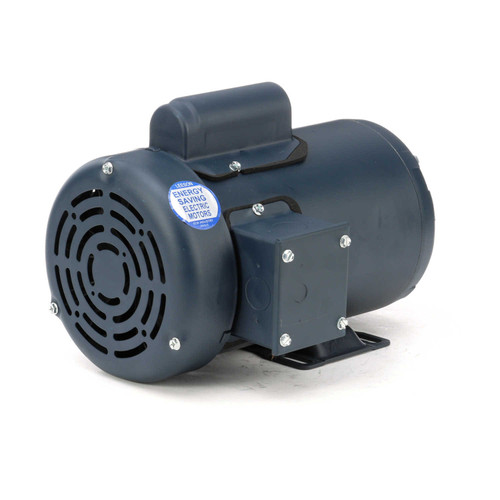

110009.00 Leeson | 1/3 hp 1140 RPM 56 Frame TEFC 115/208-230 Volts
(No reviews)
Write a Review
Write a Review
Leeson
110009.00 Leeson | 1/3 hp 1140 RPM 56 Frame TEFC 115/208-230 Volts
$690.00
$563.44
SKU
110009.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/3 HP
RPM
1140
Phase
Single Phase
Frame
56
Enclosure
TEFC
Hertz
60 Hz
Amperage
7.8/3.9 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
Mounting
Rigid Base
- 1/3 hp 1140 RPM, 7.8/3.9 amps 115/208-230 Volts 60hz. single Phase Motor

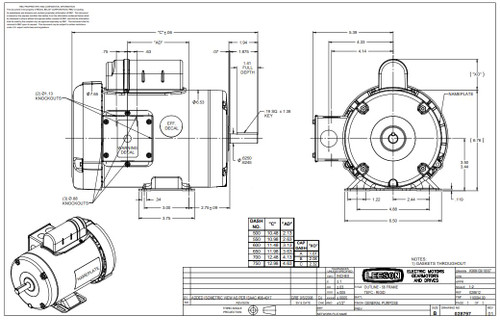

- NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
C6C11FB1F, 110009.00
Replaces Marathon C1133, 5KC49PN6062
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/3 HP |
| RPM | 1140 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 7.8/3.9 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
