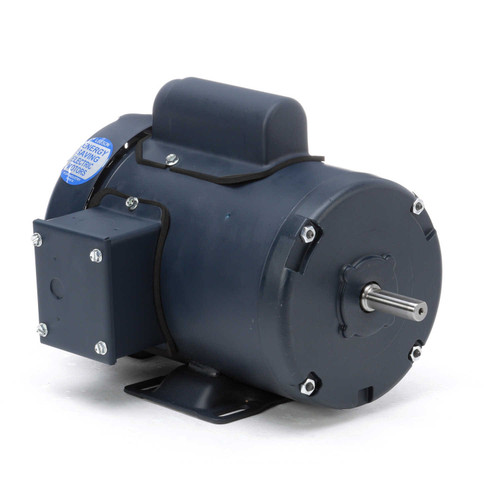

This Leeson 1/6 horsepower single-phase motor is designed for general-purpose applications requiring reliable and efficient operation. It replaces similar motors with a 48 frame size and is suitable for various industrial and HVAC uses.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1140
• Voltage: 115/208-230 Volts, 60 Hz
• Amperage: 3.8/1.9 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

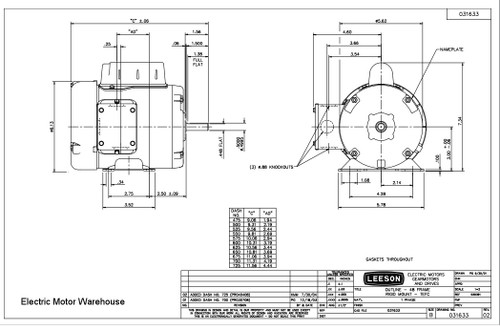

• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 1 1/2" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is designed with Class B insulation and a service factor of 1.15, though it does not include overload protection. Wiring diagrams are provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
