3053 Nidec | 1/3 hp 1725/1140 RPM 2-Speed 115V; 5.6" Blower Motor

3053 Nidec | 1/3 hp 1725/1140 RPM 2-Speed 115V; 5.6" Blower Motor

This Nidec 3053 blower motor is a reliable replacement designed for HVAC applications requiring a dual-speed motor. It delivers efficient performance with reversible rotation and is suitable for continuous duty in open drip proof environments.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1725/1140 (2-Speed)
• Voltage: 115V
• Amperage: 7.1 amps
• Enclosure: Open Drip Proof

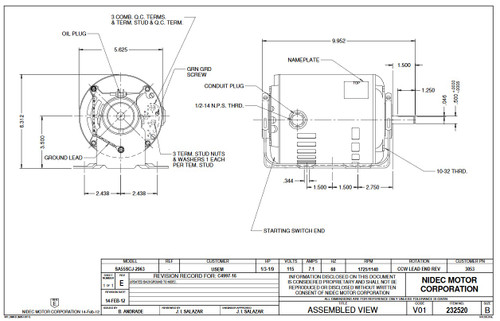

• Frame / Diameter: 5.6" diameter, 8.25" motor case length
• Shaft Dimensions: 1/2" diameter x 1.5" length; 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split phase motor features a resilient base mount for secure installation and is rated for continuous duty at 40°C ambient temperature and 60 Hz operation. It does not include thermal protection and is engineered for reliable performance in HVAC blower applications.

Warranty

1 Year Manufacturer Warranty
