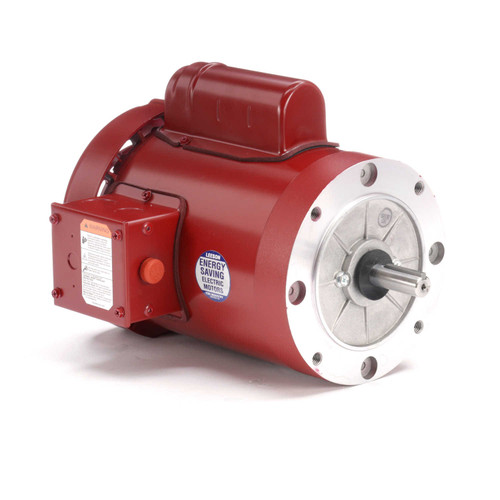

113290.00 Leeson | 1/3 hp 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

113290.00 Leeson | 1/3 hp 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

This Leeson 1/3 HP Farm Duty motor is designed for high-torque applications in harsh environments. It is ideal for replacing motors exposed to sawdust, dirt, oil, and other contaminants, ensuring reliable operation in agricultural and industrial machinery.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1725
• Voltage: 115/230 Volts, 60 Hz
• Amperage: 6.4/3.2 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

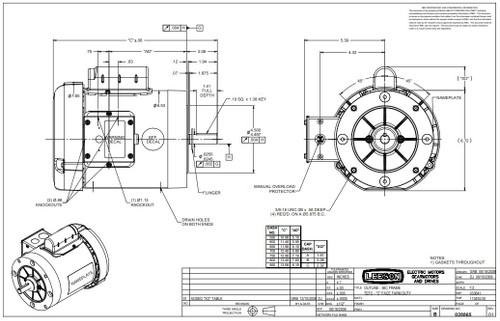

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease, rated for -20°F to +350°F

Product Features & Fitment

This round body motor features a standard NEMA "C" face mount with no rigid base, facilitating straightforward installation in compatible equipment. It includes manual overload protection with a rubber boot over the reset button for added durability. The gasketed junction box and capacitor covers enhance protection against environmental contaminants, making it well-suited for demanding farm and industrial settings.

Warranty

1 Year Manufacturer Warranty
