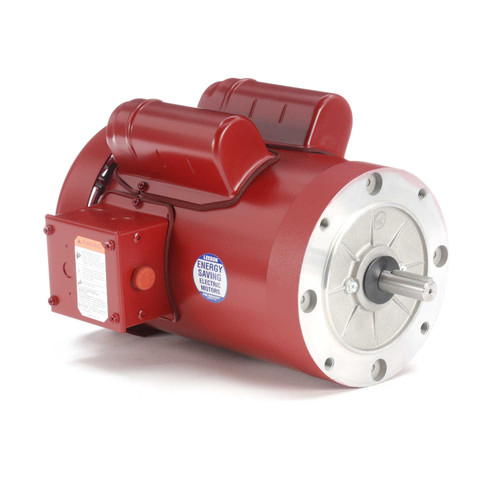

110495.00 Leeson | 1.5 HP 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

110495.00 Leeson | 1.5 HP 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

This Leeson 1.5 HP Farm Duty motor is designed for heavy-duty applications exposed to harsh environments such as sawdust, dirt, and oil. It is an ideal replacement for machines requiring a high-torque, capacitor start motor with reliable performance and durability.

Key Specifications

• Horsepower: 1.5 HP
• RPM: 1725
• Voltage: 115/230 Volts
• Amperage: 17.2/8.6 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease for -20°F to +350°F temperature range

Product Features & Fitment

This round body motor features a standard NEMA "C" face mount with no rigid base, suitable for direct mounting on compatible equipment. It includes manual overload protection with a rubber boot over the reset button for added durability. The motor’s gasketed junction box and capacitor covers provide enhanced protection against contaminants, making it well-suited for farm and industrial environments.

Warranty

1 Year Manufacturer Warranty
