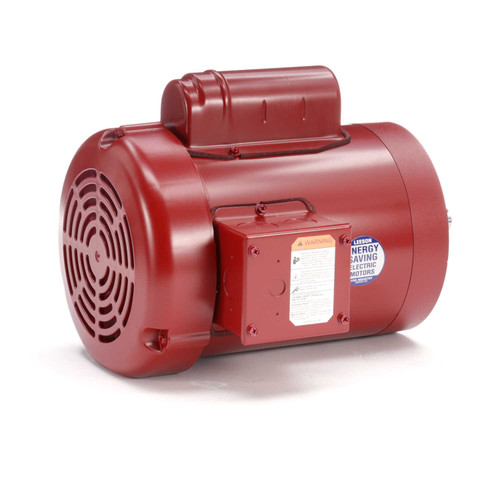

110494.00 Leeson | 1 hp 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

110494.00 Leeson | 1 hp 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

This Leeson 1 hp, 1725 RPM Farm Duty motor is designed for heavy-duty applications exposed to harsh environments such as sawdust, dirt, and oil. It is ideal for replacing or upgrading motors in agricultural and industrial machinery requiring reliable high torque performance.

Key Specifications

• Horsepower: 1 hp
• RPM: 1725
• Voltage: 115/230 Volts
• Amperage: 14/7.0 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease for -20°F to +350°F temperature range

Product Features & Fitment

This motor features a round body design with a standard NEMA "C" face mount and no rigid base, facilitating straightforward installation in compatible equipment. It includes manual overload protection with a rubber boot-covered reset button, a gasketed junction box, and capacitor covers to enhance durability in demanding farm duty environments.

Warranty
