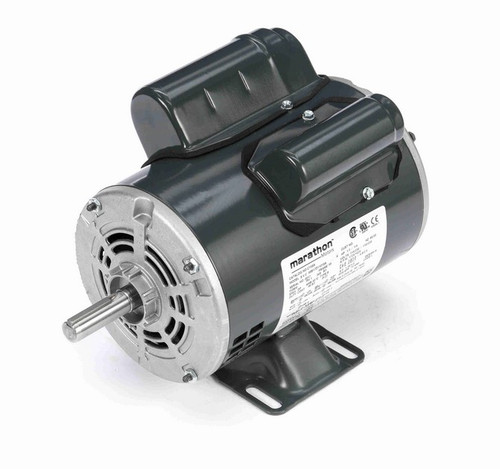

C159A Marathon 1/3 hp1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

SKU:
C159A
Weight:
21.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $311.40
Now: $271.70
Adding to cart… The item has been added
  • 1/3 hp 1800 RPM, 3.8/1.9 amps 115/230 Volts 60hz. Capacitor Start/Run Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.35, Overload protection = Auto
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof,

Marathon # 56B17D11037
Replaces Leeson A4K17DH8A, E100001.00, E100001
