FD13CM2P Nidec | 1/3 hp 1800 RPM 56 Frame TEFC (Farm Duty) 115/230V

SKU:: FD13CM2P
UPC:
Weight:: 28.00 LBS
Width:: 18.00 (in)
Height:: 11.00 (in)
Depth:: 11.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 115/230V
Horsepower:: 1/3 HP
RPM:: 1800
Frame:: 56
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 6.8/3.4 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Mounting:: Rigid Base
Duty:: Continuous Duty

Current Stock:

Was: $216.20

Now: $193.19

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

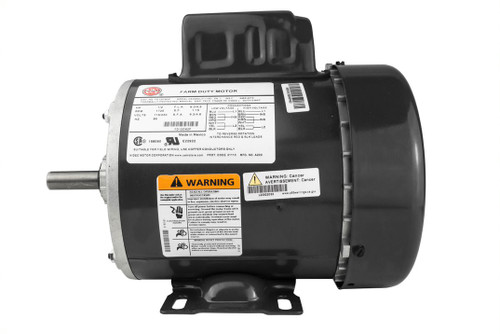

FD13CM2P Nidec | 1/3 hp 1800 RPM 56 Frame TEFC (Farm Duty) 115/230V

The FD13CM2P is a 1/3 horsepower, 1800 RPM industrial motor designed for agricultural and farm duty applications. It is a direct replacement for models such as Leeson 113256.00, Dayton 6K710, and 6ZG09, providing reliable performance in demanding environments.

Key Specifications

Horsepower: 1/3 hp
RPM: 1800
Voltage: 115/230 V, 60 Hz
Amperage: 6.8/3.4 A
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame / Diameter: NEMA 56 Frame
Shaft Dimensions: 5/8" diameter x 1 7/8" length with flat
Rotation: Electrically reversible
Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base mount suitable for secure installation in agricultural equipment. It includes manual overload protection and a service factor of 1.15, ensuring durability under continuous duty at ambient temperatures up to 40°C. The totally enclosed fan-cooled design protects internal components from dust and moisture, making it ideal for farm environments.
