Marathon

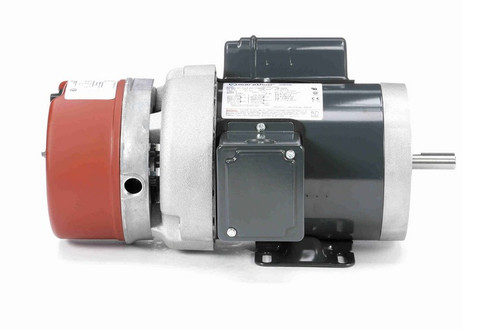

D400 Marathon 1800 RPM 56C Frame 115/208-230V Totally Enclosed Marathon Electric Brake Motor
(No reviews)
Write a Review
Write a Review
Marathon
D400 Marathon 1800 RPM 56C Frame 115/208-230V Totally Enclosed Marathon Electric Brake Motor
$1,008.09
$647.34
SKU
D400
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/3 HP
RPM
1800
Phase
Single Phase
Frame
56C
Enclosure
TEFC
Hertz
60 Hz
Amperage
3.1 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
C-Face
D400 Marathon 1800 RPM 56C Frame 115/208-230V Totally Enclosed Marathon Electric Brake Motor
This Marathon electric brake motor is a general-purpose, single-phase motor designed for various industrial and HVAC applications. It replaces motors requiring a capacitor start and offers reliable performance with a totally enclosed fan-cooled design.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 1800
- Voltage: 115/208-230 V
- Amperage: 6.6/3.3-3.1 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a capacitor start design and comes with a removable base and C-face mount for flexible installation options. It includes ball bearings and Class B insulation for durability. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/3 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 3.1 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | C-Face |
