Marathon

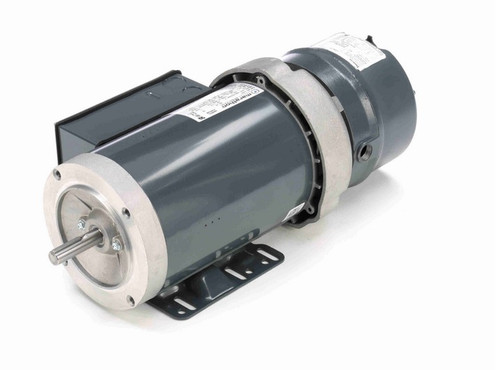

D404 Marathon 1 1/2 hp 1800 RPM 56C Frame 115/208-230V Totally Enclosed Marathon Electric Brake Motor
(No reviews)
Write a Review
Write a Review
Marathon
D404 Marathon 1 1/2 hp 1800 RPM 56C Frame 115/208-230V Totally Enclosed Marathon Electric Brake Motor
$1,399.95
SKU
MD404
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
STATUS
DISCONTINUED
Voltage
115/208/230V
Horsepower
1/2 HP
RPM
1800
Phase
Single Phase
Frame
56C
Enclosure
TEFC
Hertz
60 Hz
Amperage
7.6 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
C-Face
Motor Discontinued
- 1 1/2 hp 1800 RPM, 15.2/8.2-7.6 amps 115/208-230 Volts 60hz. Capacitor Start/Run Motor
- NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- Reversible, Removable Base and C-Face Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled, 056B17F5330
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| STATUS | DISCONTINUED |
| Voltage | 115/208/230V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 7.6 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | C-Face |
