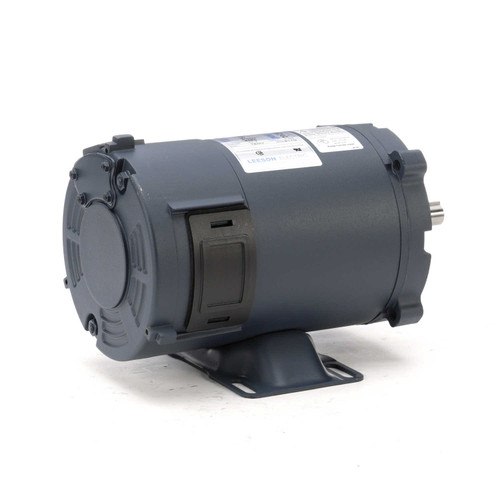

108046.00 Leeson | 1/3 hp 1800 RPM 56C Frame 12 Volts DC TENV

108046.00 Leeson | 1/3 hp 1800 RPM 56C Frame 12 Volts DC TENV

This Leeson 1/3 horsepower permanent magnet DC motor operates at 1800 RPM and is designed for low voltage applications such as battery or solar-powered systems. It serves as an exact replacement for the Dayton 6MK99 motor, offering reliable performance in heavy load and dynamic braking scenarios.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 12 Volts DC
• Amperage: 27.0 Amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame
• Rotation: Reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. Its low voltage permanent magnet design provides high starting torque and linear speed/torque characteristics across the entire speed range. The simple two-lead connection allows for easy reversible operation, and the sealed ball bearings ensure durability in demanding environments.

Cross Reference

• Dayton 6MK99 (The Dayton is actually made by Leeson Electric)
• C4D17NK6D, 108046.00

Warranty

1 Year Manufacturer Warranty
