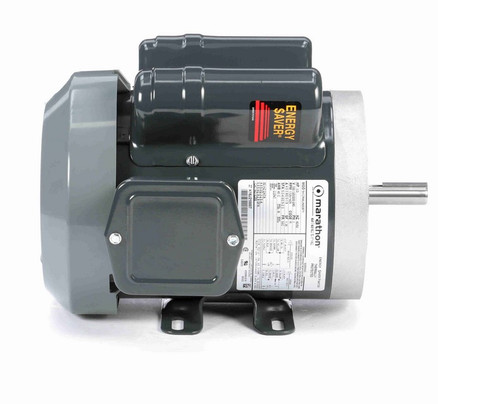

E255 Marathon 1/3 hp 1800 RPM 56C Frame TEFC 100-120/200-240V Marathon Electric Motor

E255 Marathon 1/3 hp 1800 RPM 56C Frame TEFC 100-120/200-240V Marathon Electric Motor

SKU:
E255
Weight:
26.00 LBS
Width:
10.00 (in)
Height:
11.00 (in)
Depth:
16.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
100/120/200/240V
Horsepower:
1/3 HP
RPM:
1800
Phase:
Single Phase
Frame:
56C
Enclosure:
TEFC
Hertz:
60 Hz
Type:
Capacitor Start Capacitor Run
Amperage:
1.9 Amps
Bearings:
Ball Bearings
Service Factor:
1.35
Insulation Class:
Class B
Mounting:
C-Face
Was: $713.00
Now: $618.59
Adding to cart… The item has been added
  • 1/3 hp 1800 RPM, 4.0-3.8/2.0-1.9 amps 110-120/200-240 Volts 60hz. Capacitor Start Capacitor Run Motor
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.35, Overload protection = Manual
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 5KCR46JN0087Y

!
