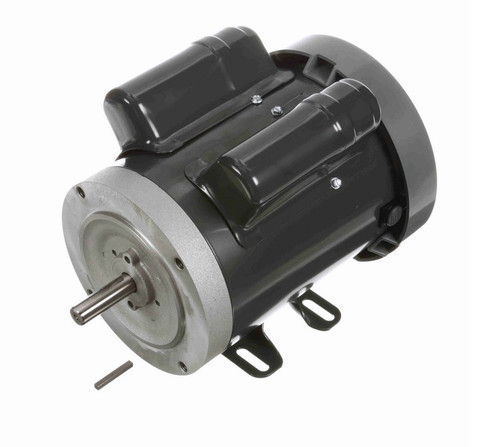

EG273 Marathon 3/4 hp 1800 RPM 56C Frame TEFC 100-120/200-240V Marathon Electric Motor

EG273 Marathon 3/4 hp 1800 RPM 56C Frame TEFC Electric Motor

The Marathon EG273 is a general-purpose, single-phase electric motor designed for various industrial and HVAC applications. It features a capacitor start and run design, suitable for replacing or upgrading motors requiring a 56C frame with a C-face mount.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 100-120/200-240V, 60 Hz
• Amperage: 9.0-8.8/4.5-4.4 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor includes a rigid base and manual overload protection. It is equipped with a C-face mount featuring four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft has a keyway for secure coupling. A wiring diagram is provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
