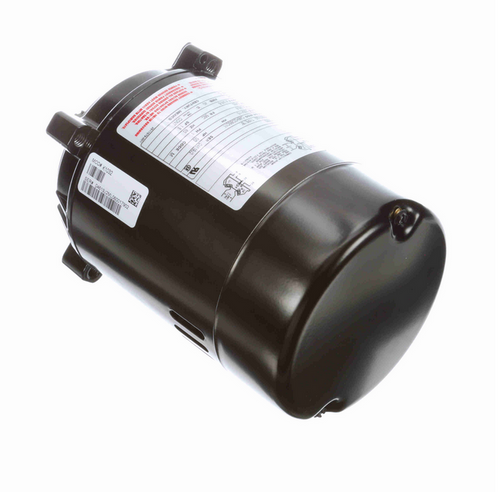

K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032
K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032
K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032
K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032
K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032
K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032
K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032
K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032

Century Electric Motor

K1032 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1032

(No reviews) Write a Review
$235.29
$199.41
SKU K1032
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/3 HP
RPM 3600
Phase Single Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 8.6/4.3 Amps
Bearings Ball Bearings
Service Factor 1.8
Insulation Class Class B
Rotation Reversible
Mounting C-Face
Adding to cart… The item has been added
Description
  • 1/3 hp 3600 RPM, 8.6/4.3 amps 115/230 Volts 60hz. Capacitor Start
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.8, Overload protection = Auto
  • No Base, Reversible rotation, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Motor for pool and spa pumps requiring a single phase electric motor with a C-face mount.  Keyed shaft, Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. K1032

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/3 HP
RPM 3600
Phase Single Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 8.6/4.3 Amps
Bearings Ball Bearings
Service Factor 1.8
Insulation Class Class B
Rotation Reversible
Mounting C-Face
!
