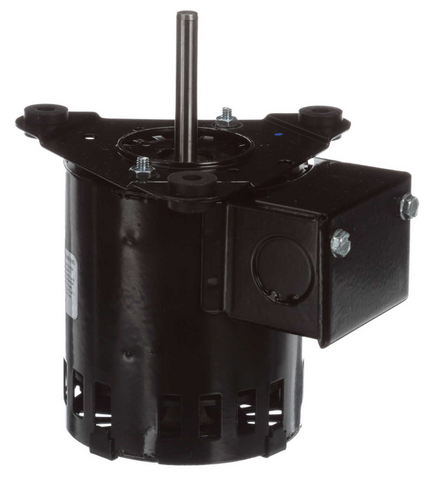

Fasco D1173 Motor | 1/30 hp 1550 RPM CW 3.3" Diameter 115 Volts (Jenn Air)

Fasco D1173 Motor | 1/30 hp 1550 RPM CW 3.3" Diameter 115 Volts (Jenn Air)

This Fasco D1173 motor is a direct replacement for Jenn Air model 70CR motors, designed for reliable performance in HVAC and appliance applications. It delivers consistent operation with a 1/30 horsepower rating and a clockwise shaft rotation.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 1.2 amps
• Frame / Diameter: 3.3" diameter
• Shaft Dimensions: 5/16" diameter x 2" length
• Rotation: Clockwise (CWSE)
• Bearings: Ball bearings

Product Features & Fitment

The motor features a bracket/lug mount for secure installation and measures 3 7/8" in length excluding the shaft. Its ball bearing construction ensures durability and smooth operation. This motor is engineered to fit Jenn Air 70CR applications requiring a compact and efficient replacement unit.

Warranty

1 Year Manufacturer Warranty
