1874 Nidec | 1/4-1/8 hp 825 RPM 1-Speed 208-230V; 5.6" Condenser Motor

1874 Nidec | 1/4-1/8 hp 825 RPM 1-Speed 208-230V; 5.6" Condenser Motor

This Nidec condenser motor is designed for HVAC applications, providing reliable performance as a direct replacement for compatible condenser units. It operates at a single speed with reversible rotation, suitable for various cooling system configurations.

Key Specifications

• Horsepower: 1/4-1/8 hp
• RPM: 825
• Voltage: 208-230V
• Amperage: 2.0 amps
• Enclosure: Totally Enclosed Air Over (TEAO)

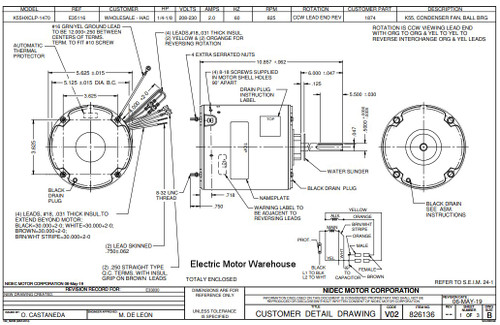

• Frame / Diameter: 5.6" diameter, 4.3" motor case length
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection and continuous duty rating. It includes four mounting holes compatible with Rheem units. A 5 MFD 370V capacitor (part #5DV) is required but not included. The motor comes with 30" leads for easy electrical connection.

Warranty

1 Year Manufacturer Warranty
