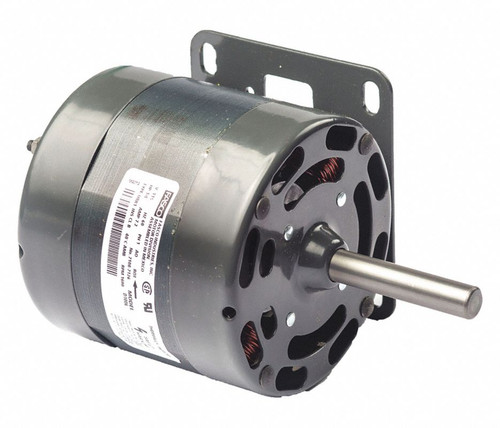

Fasco D1006 Motor | 1/4 hp 1600 RPM CW 4.4" Diameter 115 Volts (Thermal Transfer)

Fasco D1006 Motor | 1/4 hp 1600 RPM CW 4.4" Diameter 115 Volts (Thermal Transfer)

The Fasco D1006 is a reliable 1/4 horsepower motor designed for thermal transfer applications. It serves as a suggested replacement for models including 7108-6544, 66098, and Dayton 48GN04, ensuring compatibility and efficient performance.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1600
• Voltage: 115 Volts
• Amperage: 7.2 amps
• Frame / Diameter: 4.4" diameter
• Shaft Dimensions: 1/2" diameter x 2 3/4" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a base mount design for straightforward installation. The motor length excluding the shaft measures 4 1/8", allowing for precise fitment in compatible equipment. Its sleeve bearing construction supports smooth and durable operation under typical load conditions.

Cross Reference

• 7108-6544, 66098. Dayton 48GN04

Warranty

1 Year Manufacturer Warranty
