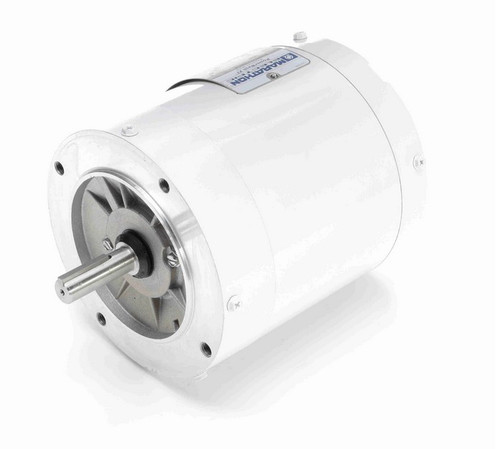

N640 Marathon 1/4 hp 1800 RPM 3-Phase 56C Frame TENV (no base) 208-230/460V Marathon Motor

SKU:: N640
UPC:
Weight:: 21.00 LBS
Width:: 11.00 (in)
Height:: 12.00 (in)
Depth:: 15.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208/230/460V
Horsepower:: 1/4 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 56C
Enclosure:: TENV
Hertz:: 60 Hz
Amperage:: 1.1/0.55 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: C-Face

Current Stock:

Was: $425.16

Now: $273.01

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

N640 Marathon 1/4 hp 1800 RPM 3-Phase 56C Frame TENV (no base) 208-230/460V Marathon Motor

This Marathon 1/4 horsepower motor is designed for industrial applications requiring a reliable 3-phase power source. It is ideal for replacing or upgrading motors in pumps, gear heads, and other machinery needing a 56C frame with a C-face mount.

Key Specifications

Horsepower: 1/4 hp
RPM: 1800
Voltage: 208-230/460V, 60 Hz
Amperage: 1.1/0.55 amps
Enclosure: Totally Enclosed Non-Ventilated (TENV)
Frame / Diameter: NEMA 56C frame
Shaft Dimensions: Stainless steel keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

This motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. It includes a stainless steel keyed shaft for secure coupling and is designed without a base for flexible installation. The motor is suitable for wash-down environments exposed to fresh water and includes a wiring diagram on the nameplate for straightforward electrical connections.
