sale
Nidec

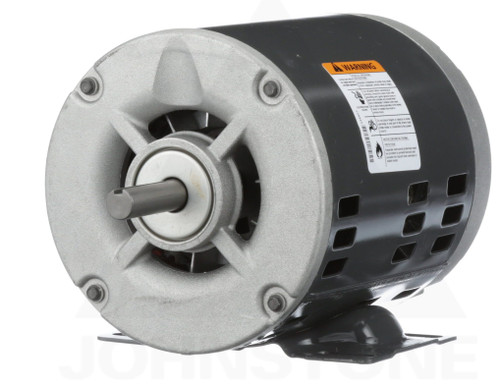

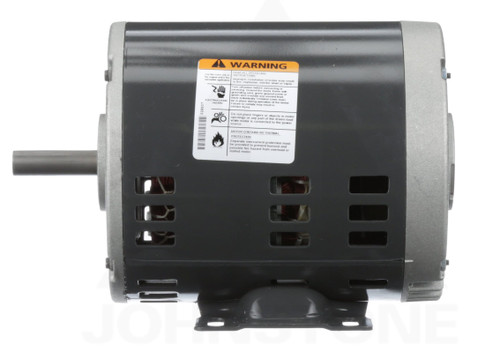

D14P2B4 Nidec | 1/4 hp 1800 RPM 48 Frame 208-230/460V Open Drip Nidec Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
D14P2B4 Nidec | 1/4 hp 1800 RPM 48 Frame 208-230/460V Open Drip Nidec Electric Motor
$248.40
$221.94
SKU
D14P2B4
Availability
Subject to availability
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230/460V
Horsepower
1/4 HP
RPM
1800
Phase
Three Phase
Frame
48
Enclosure
ODP
Amperage
1.3/0.7 Amps
Bearings
Ball Bearings
Service Factor
1.35
Insulation Class
Class B
Mounting
Rigid Base
Duty
Continuous Duty
- 1/4 hp 1800 RPM, 1.3/0.7 amps 208-230/460 Volts Three Phase Motor
- NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 7/8"
- ODP; Service Factor: 1.35, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- "C" Dimension = 9.6"
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
P055DHS1586015B
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 208/230/460V |
| Horsepower | 1/4 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 48 |
| Enclosure | ODP |
| Amperage | 1.3/0.7 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.35 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
| Duty | Continuous Duty |
