Fasco D126 Motor | 1/40 hp 1500 RPM CW 3.3" Diameter 115 Volts

Fasco D126 Motor | 1/40 hp 1500 RPM CW 3.3" Diameter 115 Volts

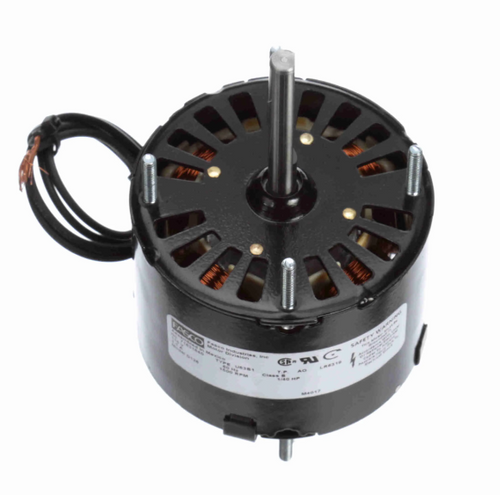

The Fasco D126 is a shaded pole motor designed as a universal replacement for various small fan and humidifier applications. It is ideal for bath fans, kitchen exhaust fans, hood range fans, humidifiers, and dehumidifiers.

Key Specifications

• Horsepower: 1/40 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 1.1 Amps
• Enclosure: Semi Enclosed - Open Air Over
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5/16" diameter x 2 1/4" length
• Rotation: Clockwise (CW) Shaft End
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and includes four mounting studs on each end, allowing flexible installation options. The motor length excluding the shaft is 2 1/2". For customized fitment, mounting studs can be cut off as needed, and the shaft can be trimmed to the required length.

Warranty

1 Year Manufacturer Warranty
