F105 Marathon 1.5 hp 1725 RPM 56H Frame TEFC (Farm Duty) Electric Motor

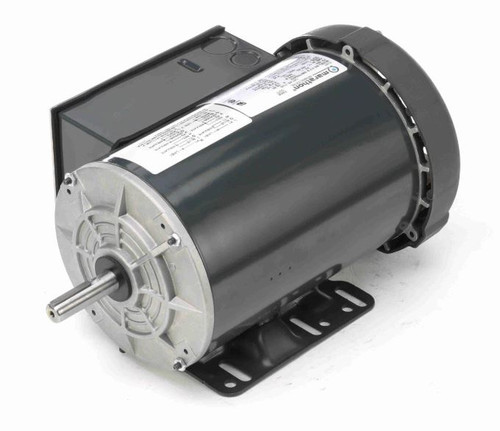

This Marathon 1.5 horsepower electric motor operates at 1725 RPM and is designed for farm duty applications. It is a direct replacement for models such as 056B17F5307 and Leeson 110089, suitable for use in demanding environments requiring reliable performance.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 115/208-230 V
• Amperage: 15.2/7.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

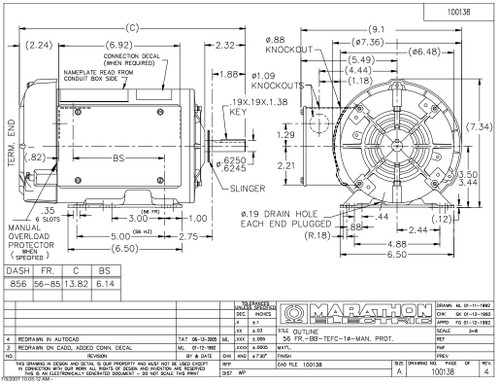

• Frame / Diameter: NEMA 56H Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

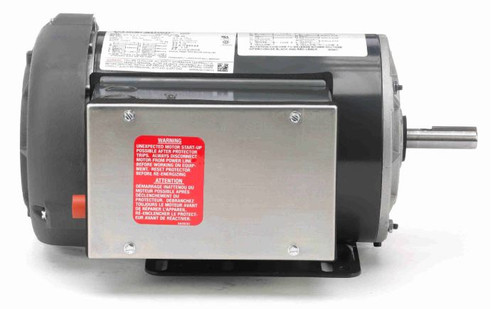

This motor features a capacitor start and capacitor start/capacitor run design to provide high starting torque and improved efficiency. It includes manual overload protection with a low temperature manual reset thermal protector for enhanced safety. The motor is built with a flat rigid base mount and fully gasketed, totally enclosed construction to withstand dirty environments. Additional features include condensate drains and a shaft slinger to protect against contaminants during operation.

Warranty

• DATA SHEET
