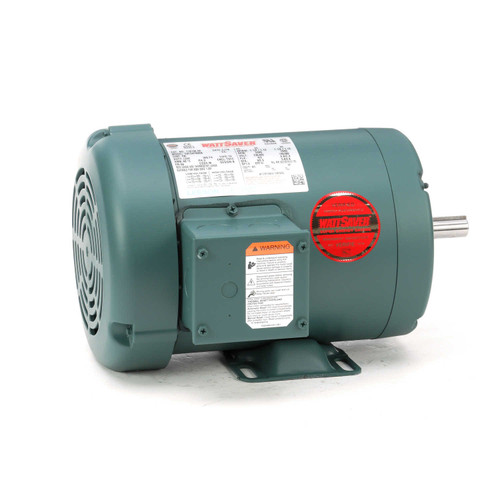

116758.00 Leeson | 1.5 hp 3600 RPM 56 Frame 230/460V TEFC

116758.00 Leeson | 1.5 hp 3600 RPM 56 Frame 230/460V TEFC

This Leeson 1.5 horsepower, three-phase electric motor operates at 3600 RPM and is designed for general-purpose industrial applications. It replaces models 110745.00 and Marathon G383A (56T34F15636), providing reliable performance in various machinery requiring a three-phase motor.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 4.0/2.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. The wiring diagram is conveniently located on the motor nameplate for easy setup. It is constructed with Class F insulation and designed without overload protection, suitable for applications where external protection is provided.

Cross Reference

• 110745.00
• Replaces Marathon G383A, 056T34F15636

Warranty

1 Year Manufacturer Warranty
