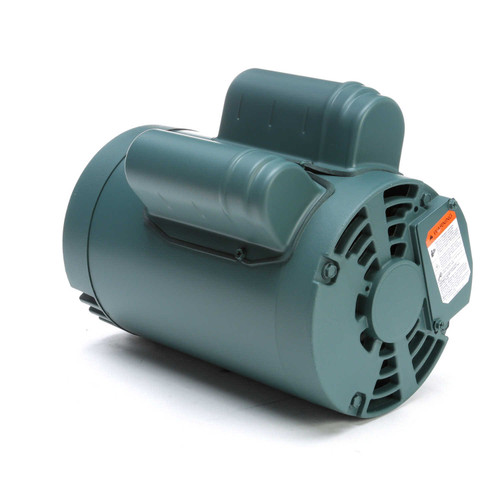

- 1.5 hp 3600 RPM, 12.2/6.1 amps 115/230 Volts 60hz. single Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15 - overload protection = Automatic
- No Base - Reversible - Round Body Motor - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
A6K34DC28A, E113336.00
