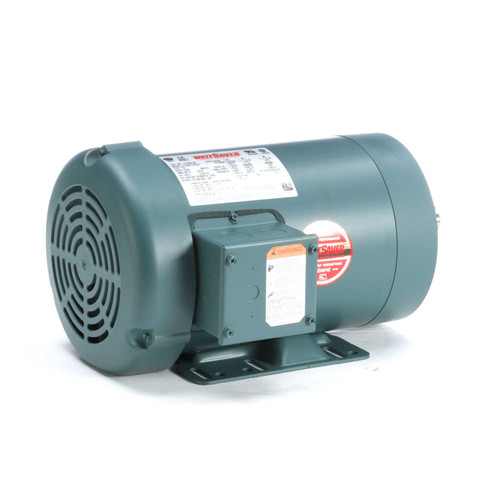

121936.00 Leeson | 1 hp 1200 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

SKU:
121936
Weight:
44.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $787.00
Now: $666.60
Adding to cart… The item has been added
  • 1 hp 1200 RPM, 3.8/1.9 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.25 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C145T11FK7A, 121936.00
Replaces Leeson G120428.00
