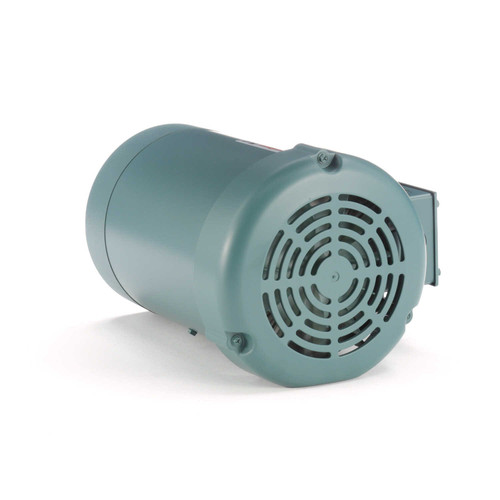

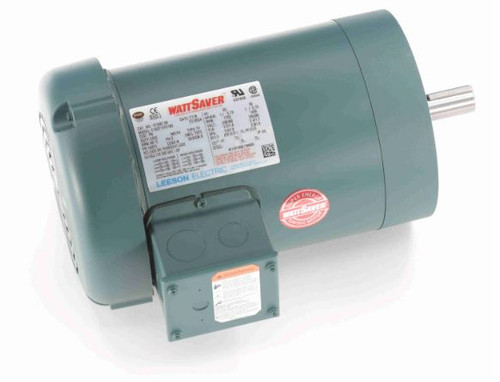

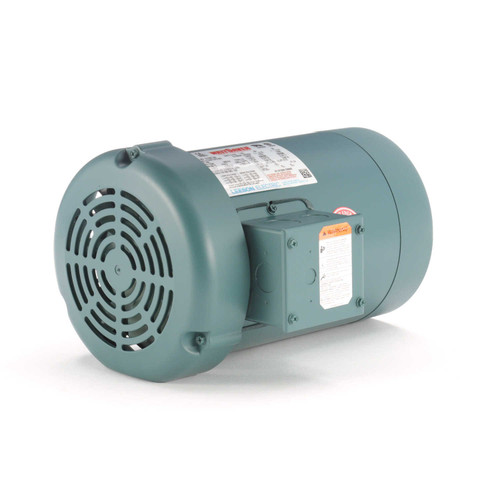

1 hp 1800 RPM 143TC Frame TEFC C-Face (No Base) 230/460V Leeson Electric Motor # 121067

SKU:
121067
Weight:
39.00 LBS
Shipping:
Free Shipping
$465.35
  • 1 hp 1800 RPM, 3.2/1.6 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 143TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 - overload protection = None
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C143T17FC16E, 121067.00
