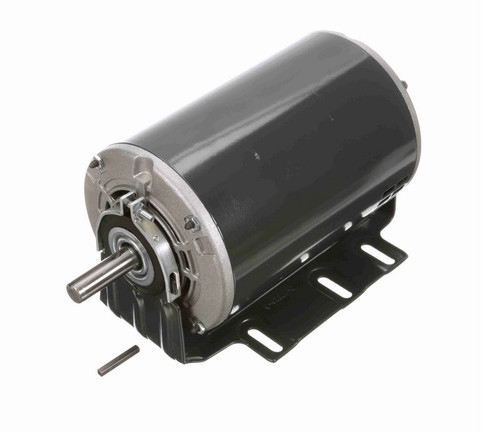

G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor
G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor
G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor
G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor
G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor
G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor
G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor
G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor

Marathon

G963 Marathon 1 hp 1800 RPM 56 Frame 575V ODP Resilient Mount Marathon Motor

(No reviews) Write a Review
$389.74
SKU MG963
UPC 7.23E+11
Shipping Free Shipping
Voltage 575V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 1.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Resilient
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 1.4 amps 575 Volts 60hz. 3 phase Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof, 056T17D2120

Specifications
Voltage 575V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 1.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Resilient
!
