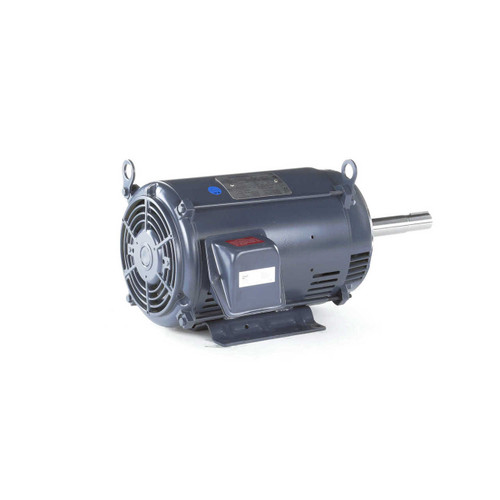

GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor
GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor
GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor
GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor
GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor
GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor
GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor
GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor

Marathon

GT2419A Marathon 10 hp 1760 RPM 215JP Frame ODP 230/460V Marathon Close Couple Motor

(No reviews) Write a Review
$1,617.25
$1,384.60
SKU GT2419A
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1760
Phase Three Phase
Frame 215JP
Enclosure ODP
Hertz 60 Hz
Amperage 25.4/12.7 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
Adding to cart… The item has been added
Description
  • 10 hp 1760 RPM 215JP Frame, 25.4/12.7 amps 230/460V 60hz. Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; No Overload Protection
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

215TTDBD6037 Replaces Model 199785.00, 199785, B199785.00, B199785

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1760
Phase Three Phase
Frame 215JP
Enclosure ODP
Hertz 60 Hz
Amperage 25.4/12.7 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
!
