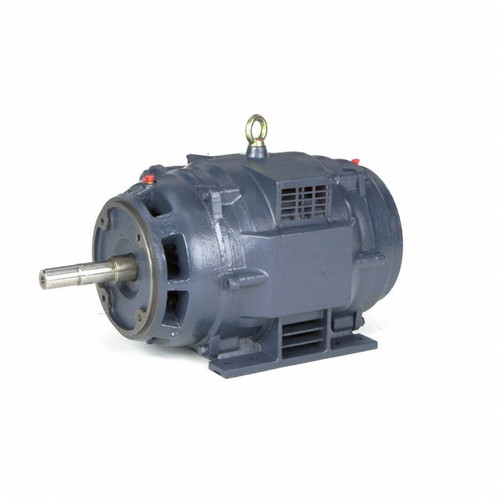

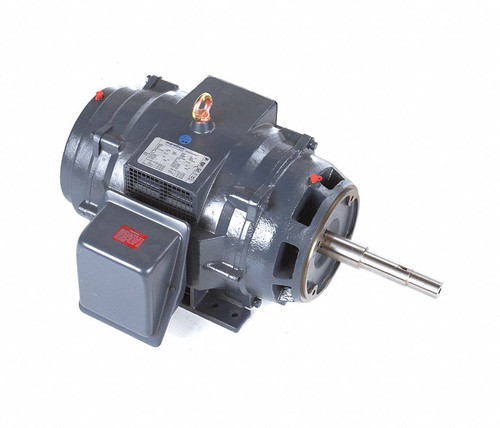

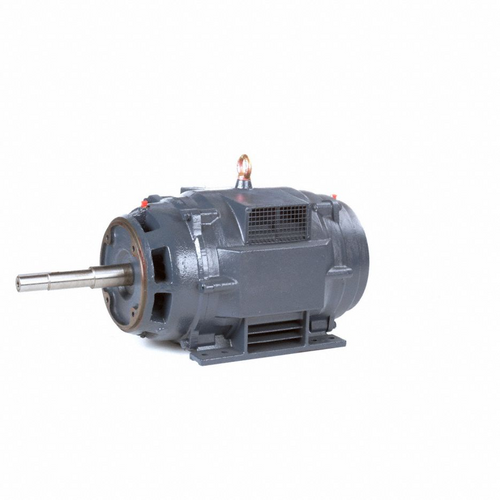

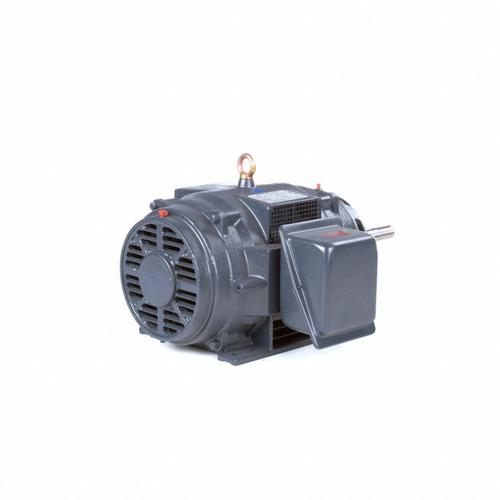

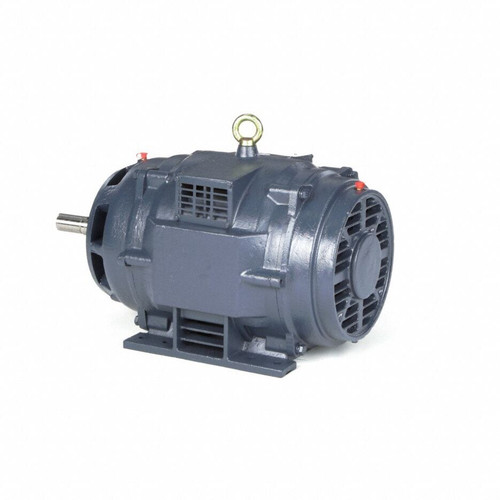

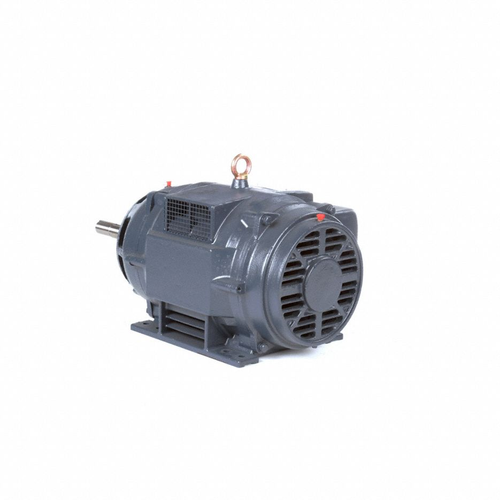

20 hp 1760 RPM 256JP Frame ODP 230/460V Marathon Close Couple Motor # GT2462

SKU:
GT2462
Manufacturer
Marathon
Weight:
500.00 LBS
Shipping:
Calculated at Checkout
$1,264.67
  • 20 hp 1760 RPM 256JP Frame, 48.5/24.3 amps 230/460V 60hz. Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; No Overload Protection
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

256TTDBD6037 Replaces Model 199989.00, 199989, B199989.00, B199989; Dayton 32UR14
