Marathon

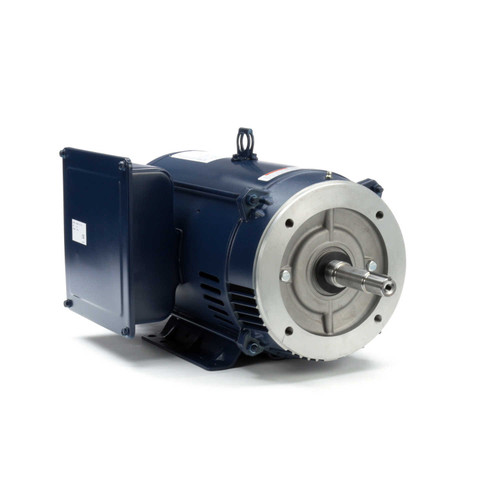

10 hp 3600 RPM 215JP Frame 230V ODP Marathon Close Couple Motor # Z431

(No reviews) Write a Review
$1,679.00
$1,437.95
SKU MZ431
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 10 HP
RPM 3600
Phase Single Phase
Frame 215JP
Enclosure ODP
Hertz 60 Hz
Amperage 47.0 Amps
Insulation Class Class F
Mounting Rigid Base
Duty continuous duty
Adding to cart… The item has been added
Description



  • 10 hp 3600 RPM 215JP Frame, 47.0 amps 230 Volts 60hz. single Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation; No Overload Protection
  • Capacitor Start/Induction Run
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base and NEMA JP pump shaft. Wiring diagram on motor name plate.

215TCDW7004; Model C215K34DK1A; 140647.00, 140647; Dayton 19YV92

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 10 HP
RPM 3600
Phase Single Phase
Frame 215JP
Enclosure ODP
Hertz 60 Hz
Amperage 47.0 Amps
Insulation Class Class F
Mounting Rigid Base
Duty continuous duty
!
