sale
Marathon

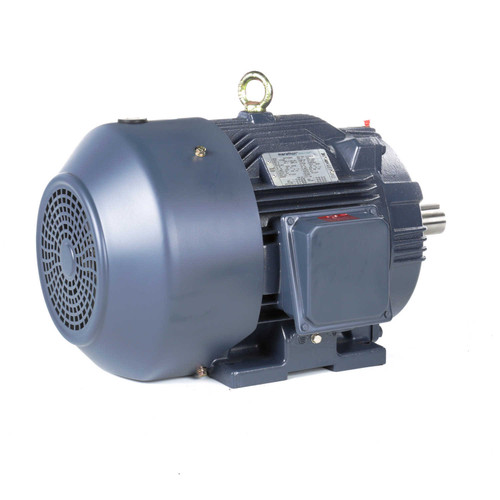

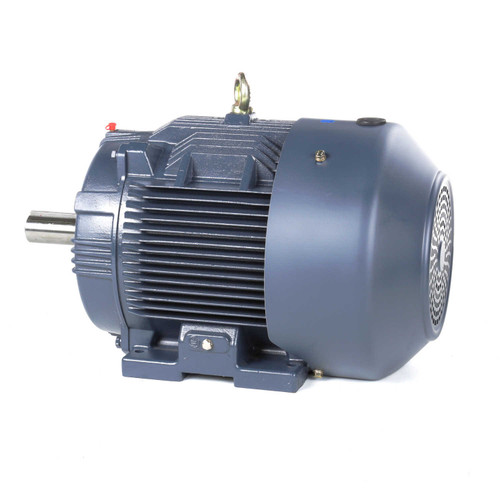

GT1018A Marathon 10 hp 3600 RPM 215T Frame 230/460V TEFC Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT1018A Marathon 10 hp 3600 RPM 215T Frame 230/460V TEFC Marathon Electric Motor
$1,195.77
$994.75
SKU
GT1018A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
10 HP
RPM
3600
Phase
Three Phase
Frame
215T
Enclosure
TEFC
Hertz
60 Hz
Amperage
23.6/11.8 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
GT1018A Marathon 10 hp 3600 RPM 215T Frame 230/460V TEFC Marathon Electric Motor
The GT1018A is a general-purpose, three-phase electric motor designed for various industrial applications. It replaces Leeson models 170159.60, 199012.00, B199012.00, and Dayton 44Z328, offering reliable performance with a totally enclosed fan-cooled (TEFC) design.
Key Specifications
- Horsepower: 10 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 23.6/11.8 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 215T
- Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base mount and a keyed shaft for secure installation. It includes a wiring diagram on the motor nameplate for ease of connection. The motor is built with Class F insulation and a service factor of 1.15, though it does not include overload protection.
Cross Reference
- Leeson 170159.60, 199012.00, B199012.00, Dayton 44Z328
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 10 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 215T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 23.6/11.8 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- Leeson 170159.60, 199012.00, B199012.00, Dayton 44Z328
