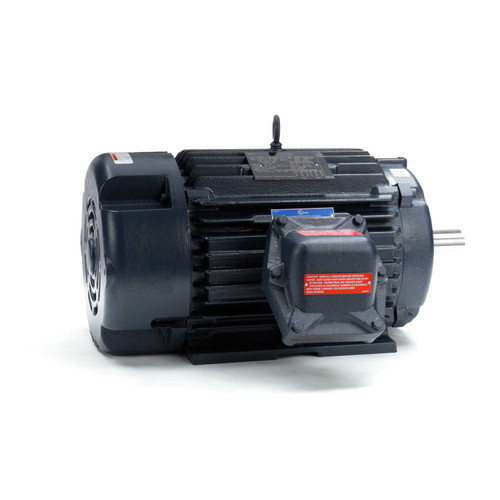

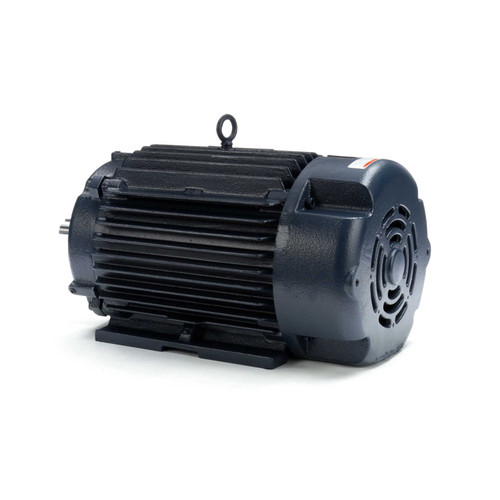

MU063A Marathon 10 hp 3600 RPM 215T 230/460V TEFC Explosion Proof Marathon Electric Motor

• 10 hp 3600 RPM, 23.8/11.9 amps 230/460 Volts 60hz. Three Phase Motor

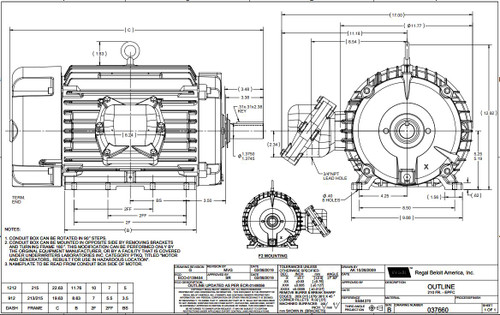

• NEMA 215T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
• Explosion Proof: Class 1, Group D; Class II, Group F & G
• Service Factor: 1.15, Class F Insulation
• Overload Protection: Normally closed thermostats (must be connected to control circuit)
• Meets temperature code T3B, Shaft slinger
• TEFC - Explosion Proof Fan cooled
• 1 Year Manufacture Warranty

Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty.

Marathon Model: 215TTGCD6501
Replaces Marathon U063, 215TTGND6501
Replaces Leeson 825090.00, Dayton 482R12
