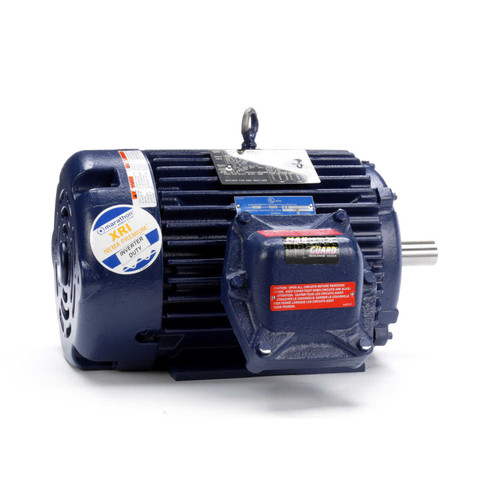

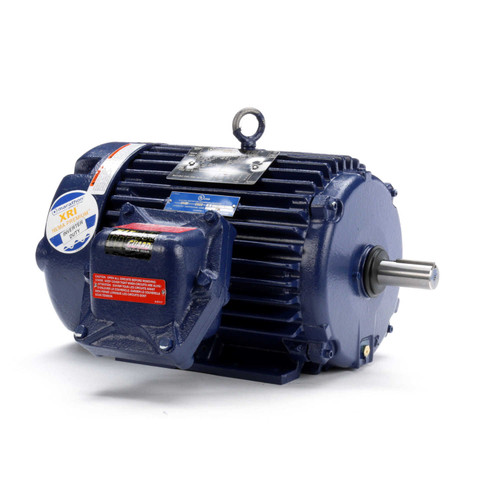

U061A Marathon 5 hp 3600 RPM 184T 230/460V TEFC Explosion Proof Marathon Electric Motor

• 5 hp 3600 RPM, 11.8/5.9 amps 230/460 Volts 60hz. Three Phase Motor
• NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
• Explosion Proof: Class 1, Group D; Class II, Group F & G
• Service Factor: 1.15, Class F Insulation
• Normally closed thermostats (must be connected to control circuit)
• Meets temperature code T3B, Shaft slinger
• TEFC - Explosion Proof Fan cooled
• 1 Year Manufacture Warranty

Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty.

Marathon Model: 184TTGCD6501
Replaces Leeson 825086.00, Dayton 5VYF5
Replaces Marathon U061A, 184TTGN6501
