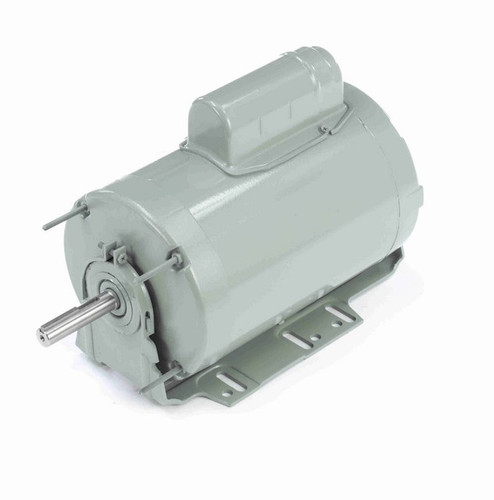

111322.00 Leeson 3/4 hp 1200 RPM 115/230V 56HZ Frame (Resilient Base) TEAO 1-Phase Farm Fan Motor

111322.00 Leeson 3/4 hp 1200 RPM 115/230V 56HZ Frame (Resilient Base) TEAO 1-Phase Farm Fan Motor

This Leeson 3/4 horsepower, 1-phase farm fan motor is designed for direct replacement and optimal performance in agricultural ventilation applications. It features a resilient base and a totally enclosed air-over (TEAO) enclosure, making it suitable for demanding farm environments.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1200
• Voltage: 115/230 V
• Amperage: 8.0/4.0 A
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 56HZ
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings, Class B insulation

Product Features & Fitment

This motor includes a resilient base for stable mounting and is designed specifically for attaching a fan blade directly onto its keyed shaft. Overload protection is automatic, and a wiring diagram is provided on the motor nameplate for easy installation. The motor is suitable for farm duty applications requiring reliable, continuous operation.

Warranty

1 Year Manufacturer Warranty
