A099836.00 Leeson 1/2 hp 900 RPM 115/230V 48YZ Frame (Resilient Base) TEAO 1-Phase Farm Fan Motor

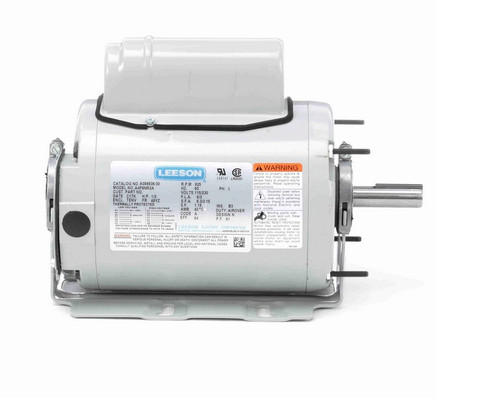

Leeson 1/2 hp 900 RPM 115/230V 48YZ Frame (Resilient Base) TEAO 1-Phase Farm Fan Motor (SKU: A099836)

This Leeson 1/2 horsepower farm fan motor is designed for reliable operation in agricultural applications. It replaces standard 1-phase motors and is ideal for attaching fan blades to provide efficient airflow in farm environments.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 900
• Voltage: 115/230 V
• Amperage: 6.0/3.0 A
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 48YZ
• Shaft Dimensions: 5/8" diameter x 2" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings, Class B Insulation

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for farm duty applications requiring a fan blade attachment. It includes an auto overload protection system and a wiring diagram located on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
