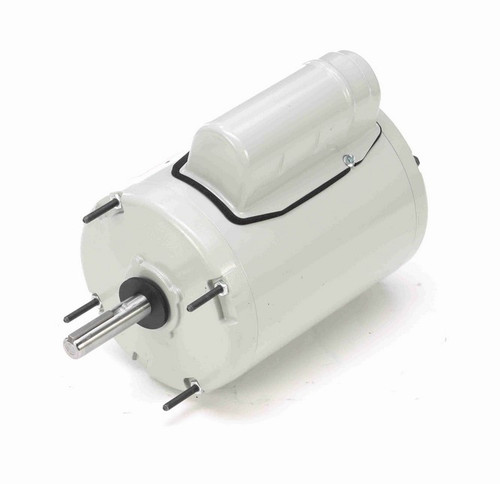

A099250.00 Leeson 1/2 hp 900 RPM 115/230V 48YZ Frame TEAO 1-Phase Farm Fan Motor

Leeson 1/2 hp 900 RPM 115/230V 48YZ Frame TEAO 1-Phase Farm Fan Motor (SKU: A099250.00)

This Leeson 1/2 horsepower, 900 RPM, single-phase motor is designed for farm fan applications requiring low starting torque. It is a general-purpose motor suitable for direct fan attachment and replaces similar 1/2 hp TEAO motors with a NEMA 48YZ frame.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 900
• Voltage: 115/230 V
• Amperage: 6.0/3.0 A
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: NEMA 48YZ
• Shaft Dimensions: 5/8" Diameter x 2 5/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a permanently split capacitor (PSC) design with a service factor of 1.15 and automatic overload protection. It does not include a base and requires installation in an air-stream environment to ensure proper cooling. The wiring diagram is provided on the motor nameplate for ease of connection.

Warranty

1 Year Manufacturer Warranty
