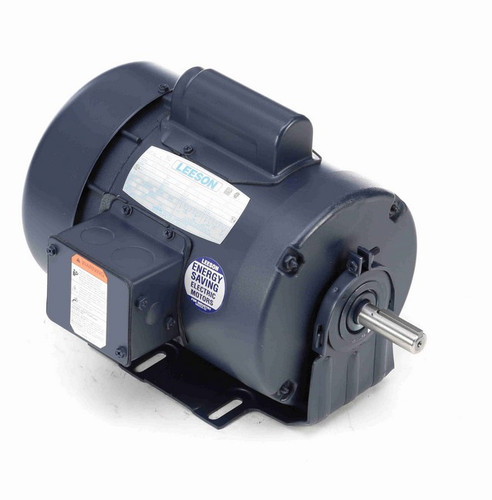

117863.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC 1-Phase High-Torque Farm Motor

117863.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC 1-Phase High-Torque Farm Motor

This Leeson high-torque farm motor is designed to replace standard 1/2 hp motors, delivering enhanced torque for demanding agricultural applications. It operates at 1800 RPM with a totally enclosed fan-cooled (TEFC) design, ensuring reliable performance in harsh environments.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 8.8/4.4-4.2 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start, single-phase motor features a rigid base for stable mounting and includes a wiring diagram on the motor nameplate for easy installation. It is equipped with Class B insulation and manual overload protection, making it suitable for farm duty applications requiring higher torque than standard designs.

Warranty

1 Year Manufacturer Warranty
