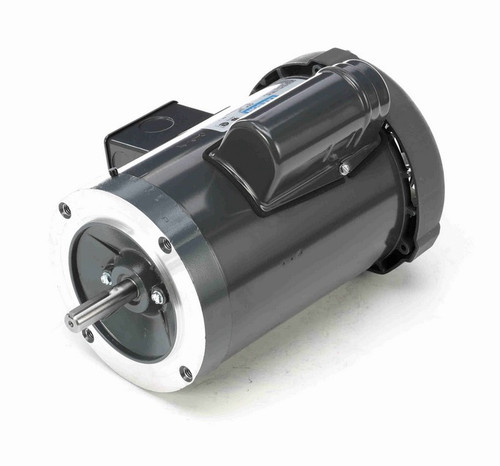

117881.00 Leeson 1 hp 1800 RPM 115/208-230V 56C Frame TEFC 1-Phase High-Torque Farm Motor
117881.00 Leeson 1 hp 1800 RPM 115/208-230V 56C Frame TEFC 1-Phase High-Torque Farm Motor
117881.00 Leeson 1 hp 1800 RPM 115/208-230V 56C Frame TEFC 1-Phase High-Torque Farm Motor
117881.00 Leeson 1 hp 1800 RPM 115/208-230V 56C Frame TEFC 1-Phase High-Torque Farm Motor
117881.00 Leeson 1 hp 1800 RPM 115/208-230V 56C Frame TEFC 1-Phase High-Torque Farm Motor
117881.00 Leeson 1 hp 1800 RPM 115/208-230V 56C Frame TEFC 1-Phase High-Torque Farm Motor

Leeson

117881.00 Leeson 1 hp 1800 RPM 115/208-230V 56C Frame TEFC 1-Phase High-Torque Farm Motor

(No reviews) Write a Review
$568.10
$480.93
SKU 117881
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1 HP
RPM 1800
Phase Single Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 6.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting C-Face
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 13.4/6.8-6.7 amps 115/208-230 Volts 60 Hz. Cap Start 1-Phase Motor
  • NEMA 56 Frame with Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload Protection = Manual
  • No Base, Reversible, Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

Farm duty motor with higher torque than normal design having a C-Face mount. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 117881.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1 HP
RPM 1800
Phase Single Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 6.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting C-Face
!
