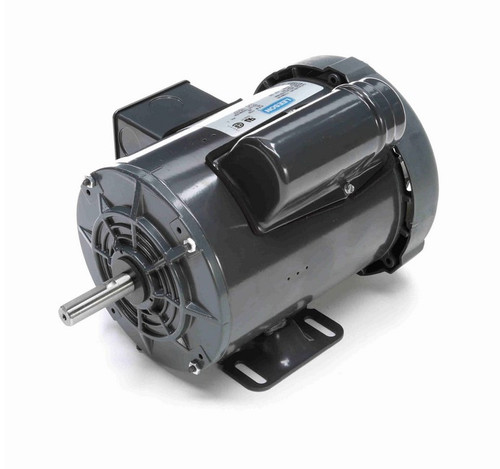

117864.00 Leeson 3/4 hp 1800 RPM 115/208-230V 56 Frame TEFC 1-Phase High-Torque Farm Motor

117864.00 Leeson 3/4 hp 1800 RPM 115/208-230V 56 Frame TEFC 1-Phase High-Torque Farm Motor

This Leeson 3/4 horsepower, 1-phase motor is designed for farm duty applications requiring higher torque than standard motors. It serves as a reliable replacement for similar NEMA 56 frame motors in agricultural and industrial equipment.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 11.0/5.4-5.5 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and includes a keyed shaft for secure coupling. It has a capacitor start design suitable for single-phase power supplies. The wiring diagram is conveniently located on the motor nameplate to assist with installation. Overload protection is manual, and the motor is built with Class B insulation for durability in demanding environments.

Warranty

1 Year Manufacturer Warranty
