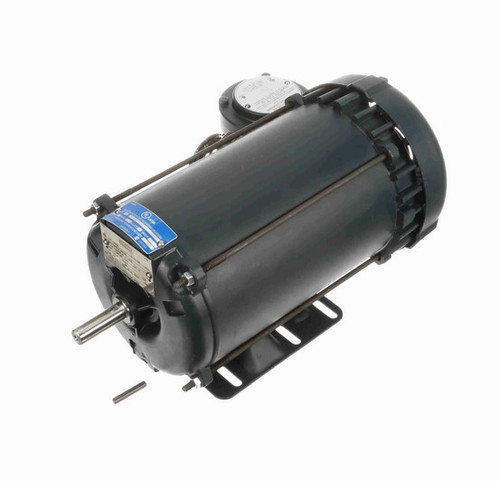

119426.00 Leeson 1 hp 1800 RPM 208-230/460V 56H Frame Explosion-Proof (Rigid Base) 3-Phase Motor

SKU:: 119426
UPC:: 6.92E+11
Weight:: 48.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 19.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208/230/460V
Horsepower:: 1 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 56H
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 3.3/1.7 Amps
Bearings:: Ball Bearings
Service Factor:: 1.0
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

Was: $1,252.35

Now: $1,061.68

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

119426.00 Leeson 1 hp 1800 RPM 208-230/460V 56H Frame Explosion-Proof (Rigid Base) 3-Phase Motor

This Leeson 1 horsepower, 3-phase motor is designed for hazardous environments requiring explosion-proof equipment. It is suitable for industrial applications needing a reliable, totally enclosed fan-cooled motor with a rigid base mounting.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 208-230/460 V
Amperage: 3.3-3.3/1.7 A
Enclosure: Totally Enclosed Fan-Cooled (TEFC)
Frame / Diameter: NEMA 56H Frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This explosion-proof motor includes a conduit box and is rated for Class I, Groups C & D, and Class II, Groups F & G hazardous locations with a T3C temperature rating. It features a rigid base for secure mounting and comes with a thermostat for overload protection. Wiring diagrams are provided on the motor nameplate for ease of installation.
