- 3 hp 1800 RPM, 8.8/4.4 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 145TC frame, C-face, Stainless Steel Keyed Shaft 7/8" Diameter x 2 1/8"
- Service Factor: 1.0, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,

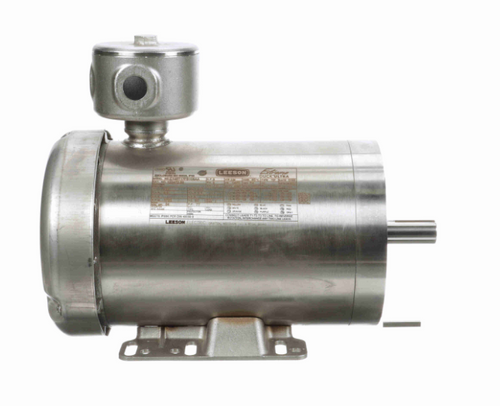

Standard Stainless Steel wash-down motors are use in applications involving wet environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 122472.00
