sale
Leeson

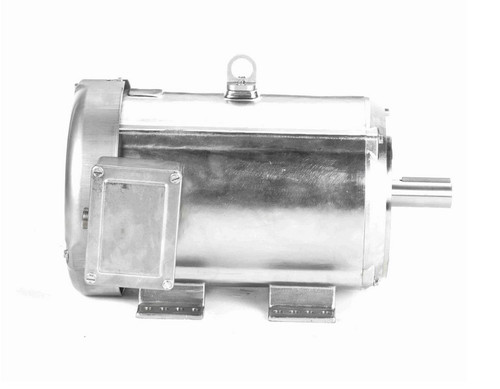

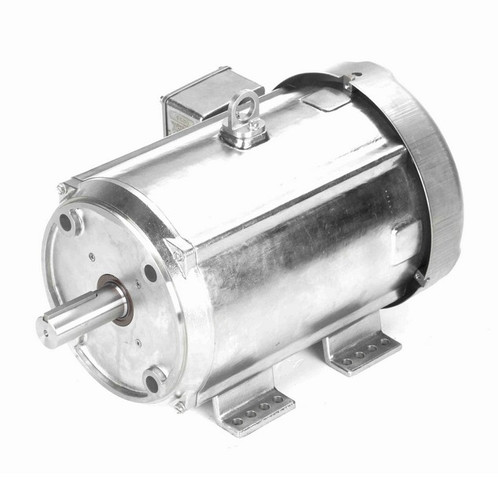

140827.00 Leeson 10 hp 3600 RPM 230/460V 215TC Frame (Rigid Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
(No reviews)
Write a Review
Write a Review
Leeson
140827.00 Leeson 10 hp 3600 RPM 230/460V 215TC Frame (Rigid Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
$4,192.90
$3,372.84
SKU
140827.00
UPC
6.92E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230/460V
Horsepower
10 HP
RPM
3600
Phase
Three Phase
Frame
215TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
23.6/11.8 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 10 hp 3600 RPM, 23.6/11.8 amps 230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 215TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8
- Service Factor: 1.15, Overload Protection = None
- Rigid Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
Premium Stainless Steel Wash Duty motor with a C-face mount for use in wet environments requiring the addition of strong corrosive disinfectants . Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 140827.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230/460V |
| Horsepower | 10 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 215TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 23.6/11.8 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
