sale
Leeson

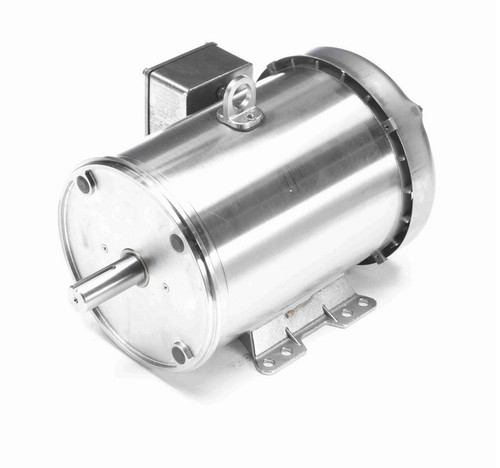

132207.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame (Rigid Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
(No reviews)
Write a Review
Write a Review
Leeson
132207.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame (Rigid Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
$2,870.40
$2,305.75
SKU
132207.00
UPC
6.92E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230/460V
Horsepower
5 HP
RPM
3600
Phase
Three Phase
Frame
184TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
12.0/6.0 Amps
Bearings
Ball Bearings
Service Factor
1.25
Insulation Class
Class F
Mounting
Rigid Base
- 5 hp 3600 RPM, 12.0/6.0 amps 230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4
- Service Factor: 1.25, Overload Protection = None
- Rigid Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
Premium Stainless Steel Wash Duty motor with a C-face mount for use in wet environments requiring the addition of strong corrosive disinfectants . Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132207.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230/460V |
| Horsepower | 5 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 184TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 12.0/6.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.25 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
