sale
Leeson

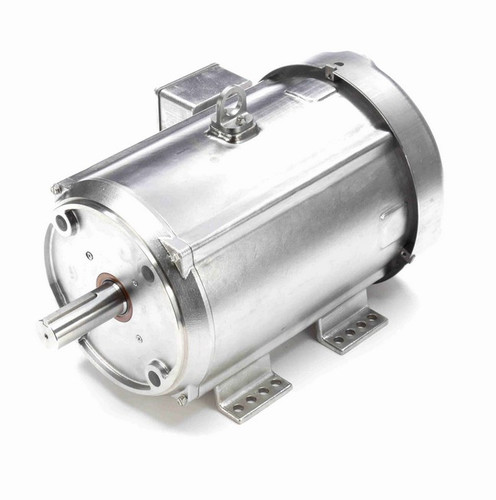

140825.00 Leeson 7 1/2 hp 3600 RPM 230/460V 213TC Frame (Rigid Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
(No reviews)
Write a Review
Write a Review
Leeson
140825.00 Leeson 7 1/2 hp 3600 RPM 230/460V 213TC Frame (Rigid Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
$4,083.65
$3,280.38
SKU
140825.00
UPC
6.92E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230/460V
Horsepower
1/2 HP
RPM
3600
Phase
Three Phase
Frame
213TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
17.8/8.9 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 7 1/2 hp 3600 RPM, 17.8/8.9 amps 230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 213TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8
- Service Factor: 1.15, Overload Protection = None
- Rigid Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
Premium Stainless Steel Wash Duty motor with a C-face mount for use in wet environments requiring the addition of strong corrosive disinfectants . Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 140825.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230/460V |
| Horsepower | 1/2 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 213TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 17.8/8.9 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
