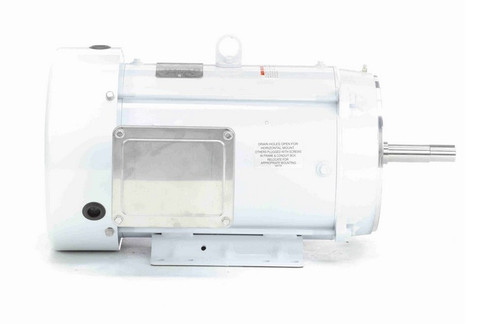

141358.00 Leeson 15 hp 3600 RPM 230/460V 215JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor
141358.00 Leeson 15 hp 3600 RPM 230/460V 215JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor
141358.00 Leeson 15 hp 3600 RPM 230/460V 215JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor
141358.00 Leeson 15 hp 3600 RPM 230/460V 215JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor
141358.00 Leeson 15 hp 3600 RPM 230/460V 215JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor
141358.00 Leeson 15 hp 3600 RPM 230/460V 215JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor

Leeson

141358.00 Leeson 15 hp 3600 RPM 230/460V 215JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor

(No reviews) Write a Review
$3,198.15
$2,529.66
SKU 141358.00
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html

CURRENTLY OUT OF STOCK

Description
  • 15 hp 3600 RPM, 35.0/ 17.6 amps 230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 215JM Frame with JM Shaft
  • Service Factor: 1.15, Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Wash Duty JM frame close-coupled pump motor with a C-face mount for use in wet and misty environments in which the pump head is attached directly to the shaft. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 141358.00
