HD150P2F Nidec | 150 hp 1800 RPM 445T Frame 460V TEFC Nidec Electric Motor

HD150P2F Nidec | 150 hp 1800 RPM 445T Frame 460V TEFC Nidec Electric Motor

SKU:
HD150P2F
Weight:
1,480.00 LBS
Width:
48.00 (in)
Height:
38.00 (in)
Depth:
24.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
460V
Horsepower:
150 HP
RPM:
1800
Phase:
Three Phase
Frame:
445T
Enclosure:
TEFC
Amperage:
171.0 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Duty:
Continuous Duty
Was: $10,921.55
Now: $9,751.89
Adding to cart… The item has been added
  • 150 hp 1800 RPM,171.0 amps 460 Volts Three Phase Motor
  • NEMA 445T Frame Keyed Shaft 3 3/8" Diameter x 8 1/2"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

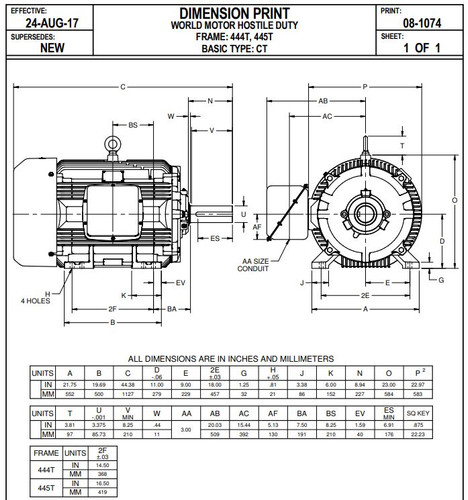

  • "C" Dimension = 44.4"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GJ06, H150P2F



!
