HD150P2FS Nidec | 150 hp 1800 RPM 445TS Frame 460V TEFC Nidec Electric Motor

SKU:
HD150P2FS
Weight:
1,480.00 LBS
Shipping:
Calculated at Checkout
$6,875.42
  • 150 hp 1800 RPM, 171.0 amps 460 Volts Three Phase Motor
  • NEMA 445TS Frame Keyed Shaft 2 3/8" Diameter x 4 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

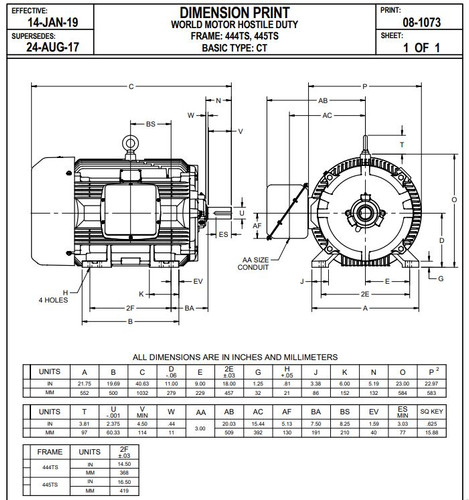

  • "C" Dimension = 40.6"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GJ08
