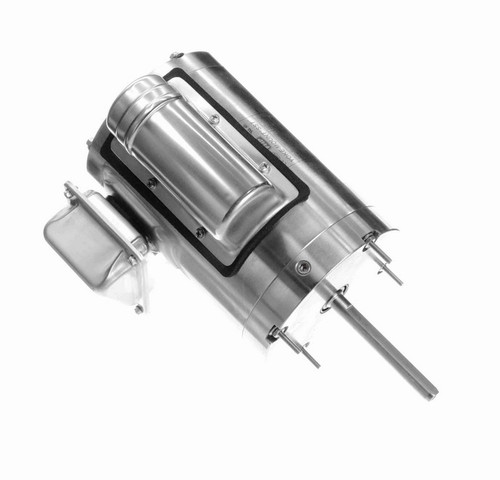

191548.00 Leeson 1/2 hp 1200 RPM 230/460V 48YZ Frame (Yoke Mount) TEAO 1-Phase Stainless-Steel Wash-Down Motor
191548.00 Leeson 1/2 hp 1200 RPM 230/460V 48YZ Frame (Yoke Mount) TEAO 1-Phase Stainless-Steel Wash-Down Motor
191548.00 Leeson 1/2 hp 1200 RPM 230/460V 48YZ Frame (Yoke Mount) TEAO 1-Phase Stainless-Steel Wash-Down Motor
191548.00 Leeson 1/2 hp 1200 RPM 230/460V 48YZ Frame (Yoke Mount) TEAO 1-Phase Stainless-Steel Wash-Down Motor
191548.00 Leeson 1/2 hp 1200 RPM 230/460V 48YZ Frame (Yoke Mount) TEAO 1-Phase Stainless-Steel Wash-Down Motor
191548.00 Leeson 1/2 hp 1200 RPM 230/460V 48YZ Frame (Yoke Mount) TEAO 1-Phase Stainless-Steel Wash-Down Motor

Leeson

191548.00 Leeson 1/2 hp 1200 RPM 230/460V 48YZ Frame (Yoke Mount) TEAO 1-Phase Stainless-Steel Wash-Down Motor

(No reviews) Write a Review
$802.70
$680.57
SKU 191548.00
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1/2 HP
RPM 1200
Phase Single Phase
Frame 48YZ
Enclosure TEAO
Hertz 60 Hz
Amperage 5.4/2.7 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 1/2 hp 1200 RPM, 5.4/2.7 amps 230/460 Volts 60 Hz. PSC 1-Phase Motor
  • NEMA 48YZ Frame Keyed Shaft 1/2" Diameter x 1 1/2
  • Service Factor: 1.0, Overload Protection = Auto
  • Yoke Mount, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Stainless Steel Wash Duty motor with a yoke pedestal fan mount for use in wet and misty environments. Wiring diagram on motor name plate. TEAO = Totally Enclosed Air-Over. 191548.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1/2 HP
RPM 1200
Phase Single Phase
Frame 48YZ
Enclosure TEAO
Hertz 60 Hz
Amperage 5.4/2.7 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
!
