1LPN6, 3M126 Dayton Direct Interchange 7 RPM 1/20 hp 115V Bison AC Parallel Shaft Gear Motor Model 013Q257-0250

1LPN6, 3M126 Dayton Direct Interchange 7 RPM 1/20 hp 115V Bison AC Parallel Shaft Gear Motor Model 013Q257-0250

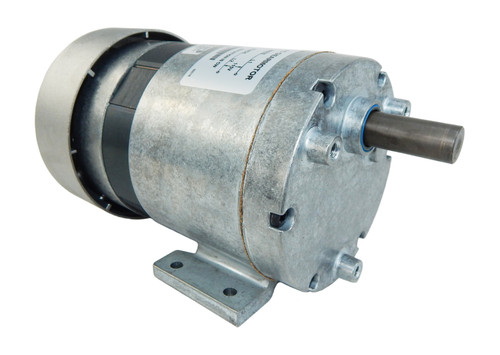

This Bison AC Parallel Shaft Gear Motor is a direct OEM replacement for Dayton models 1LPN6 and 3M126, as well as Von Wiese V00212ER08. Designed for industrial applications requiring reliable low-speed torque, it delivers consistent performance with a 7 RPM output and 1/20 horsepower.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 7
• Voltage: 115 V
• Amperage: 1.6 A
• Enclosure: Totally Enclosed Fan Cooled
• Shaft Dimensions: 5/8" Diameter x 1-1/2" Length, Woodruff Keyed
• Rotation: Clockwise (facing shaft)

Product Features & Fitment

This motor features a load torque of 113 inch-pounds and supports an overhung load of up to 150 pounds, indicating the maximum weight that can be applied directly downward on the shaft without causing internal damage. It is not suitable for speed control applications. The shaft is Woodruff keyed for secure coupling, and the motor is UL and C-UL recognized for safety and compliance.

Cross Reference

• Dayton 1LPN6, 3M126
• Von Wiese V00212ER08

Warranty

1 Year Manufacturer Warranty
