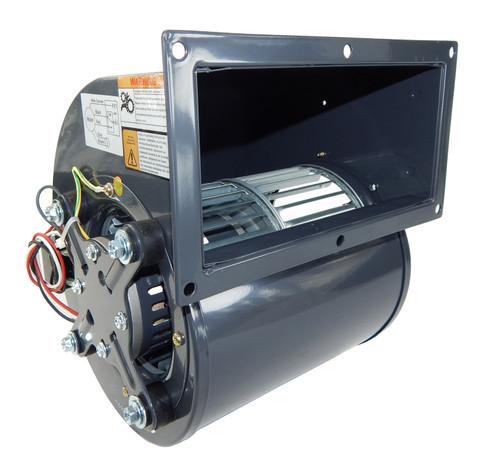

1TDT6, 4C565 Dayton Direct OEM Interchange Replacement Blower

This replacement blower is designed as a direct OEM aftermarket substitute for the discontinued Dayton 1TDT6 and 4C565 models. It is ideal for use in pellet stoves, wood stoves, fireplaces, furnaces, and HVAC systems to facilitate air circulation, ventilation, and discharge.

Key Specifications

RPM: 1500/1085 (High/Low Speed)
Voltage: 115 Volts, 60/50 Hz
Amperage: 1.10/0.85 Amps (High/Low Speed)
Bearings: Ball Bearings

Product Features & Fitment

This blower features a painted steel housing with insulation class B and is equipped with a PSC motor type. It supports two-speed operation (high and low) with maximum airflow of 428/293 CFM. The unit mounts in all positions and includes an outlet flange with bolt hole dimensions of 8-7/8" x 4-3/8". It has automatic overload protection and is cULus approved. Note that the blower is non-reversible, not recommended for speed control, and does not include a power cord or on/off switch. Professional installation by a certified technician is recommended, and power should be turned off before replacement.
